    Measuring Range of 50m Rail Curve Measuring Tools String line rail curve measuring tool

    Ask Lasest Price
    Brand Name : Kingrail
    Model Number : 50m Rail Curve Measuring Tools
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000000ton
    Delivery Time : 1-30 working days
    • Product Details
    • Company Profile

    Measuring Range of 50m Rail Curve Measuring Tools String line rail curve measuring tool

    PRODUCT DESCRIPTION of Measuring Range of 50m Rail Curve Measuring Tools String line rail curve measuring tool

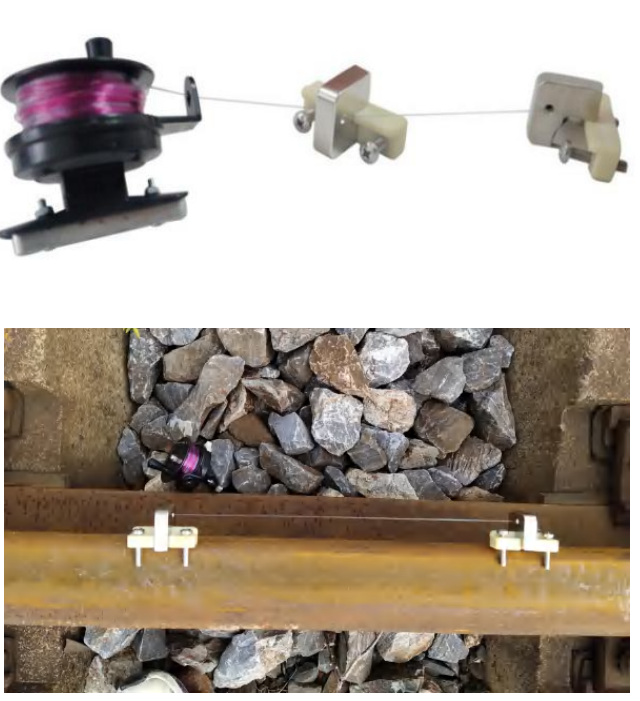

    String line rail curve measuring tool, is also called string line box for railway curve measurement. It is a necessary tool for railway works construction. Curve positive vector measuring box is a regular work in rail line maintenance. In order to facilitate the work of the worker to complete this job, a new line curve positive vector measuring box has been development.

    Benifit of Measuring Range of 50m Rail Curve Measuring Tools String line rail curve measuring tool


    The protective device for the gauge gauge used in the railway work section includes the gauge gauge body and two cleaning components. The gauge head is fixed on both sides of the bottom end of the gauge gauge body, and the end away from the gauge gauge body is fixed with a protective sleeve. The inside of the protective sleeve rod is provided with a chute, and the two cleaning components include a first sliding rail, a first sliding plate, a second sleeve, a second sliding block, a push rod, a second connecting rod, a connecting column, two There are two second sliding rails and two second sliding plates, and the beneficial effect of the present invention is that the rubber blocks arranged at one end of the two second connecting rods and the sponge sleeves sleeved on the surfaces of the two rubber blocks can prevent the The oil stains on both sides of the gauge body are wiped off; the dampers arranged on both sides of the top of the chute can play a buffering role when the protective sleeve rod is collided, so that the gauge body inside the gauge body can be buffered. protection.


    The utility model relates to a gauge ruler capable of measuring the loss of tip rails, and relates to a railway track measurement tool, including a gauge gauge body. It includes a connecting plate fixed with the gauge body, a guide mounting plate that is slid and limited in the chute of the connecting plate, and a loss detection ruler fixed on the guide mounting plate. The beneficial technical effect of the utility model is that: the structure of the existing gauge gauge is cleverly utilized, and a tip rail loss detection device is added to the existing structure, so as to achieve the purpose of detecting both the track gauge and the tip rail loss, and improves the performance of the track gauge. Efficiency and cost reduction.


    Model


    Measuring Range


    Weight


    Dimension

    ZSH-5050m210g133*66*26mm


    Quality Measuring Range of 50m Rail Curve Measuring Tools String line rail curve measuring tool for sale
